Our Products

Pressure Vessels

Our policy of providing specialist bespoke designs coupled with our willingness to collaborate with the customer allows us to respond very quickly to design changes or modifications either during or after the manufacture of the autoclave.

Although we have a range of standard products and bespoke systems, each can be customised to accommodate the client’s exact requirements

Essentially, some of the more common options are detailed below: -

  • Vessel Material of Construction - Ordinarily stainless steels; however, more exotic materials are available on request: Titanium, High Nickel alloys, Inconel 625 and Hastelloy.

  • Vessel Volumes Microlaves - 1ml to 50ml, 100ml, 200ml, 300ml, 500ml, 1000ml etc. Larger volumes up to 10,000 litres.

  • Vessel Temperatures - From -196 to 1400 deg C

  • Vessel Pressure - Full vacuum to 6000barg

  • Motor-driven magnetically stirred overhead agitation to suit every vessel from 0 to 5000RPM

  • Multicellular Reactors - 1 to 10 to 100 cells

Contact us today for a quote!

Custom Vessel Enhancements

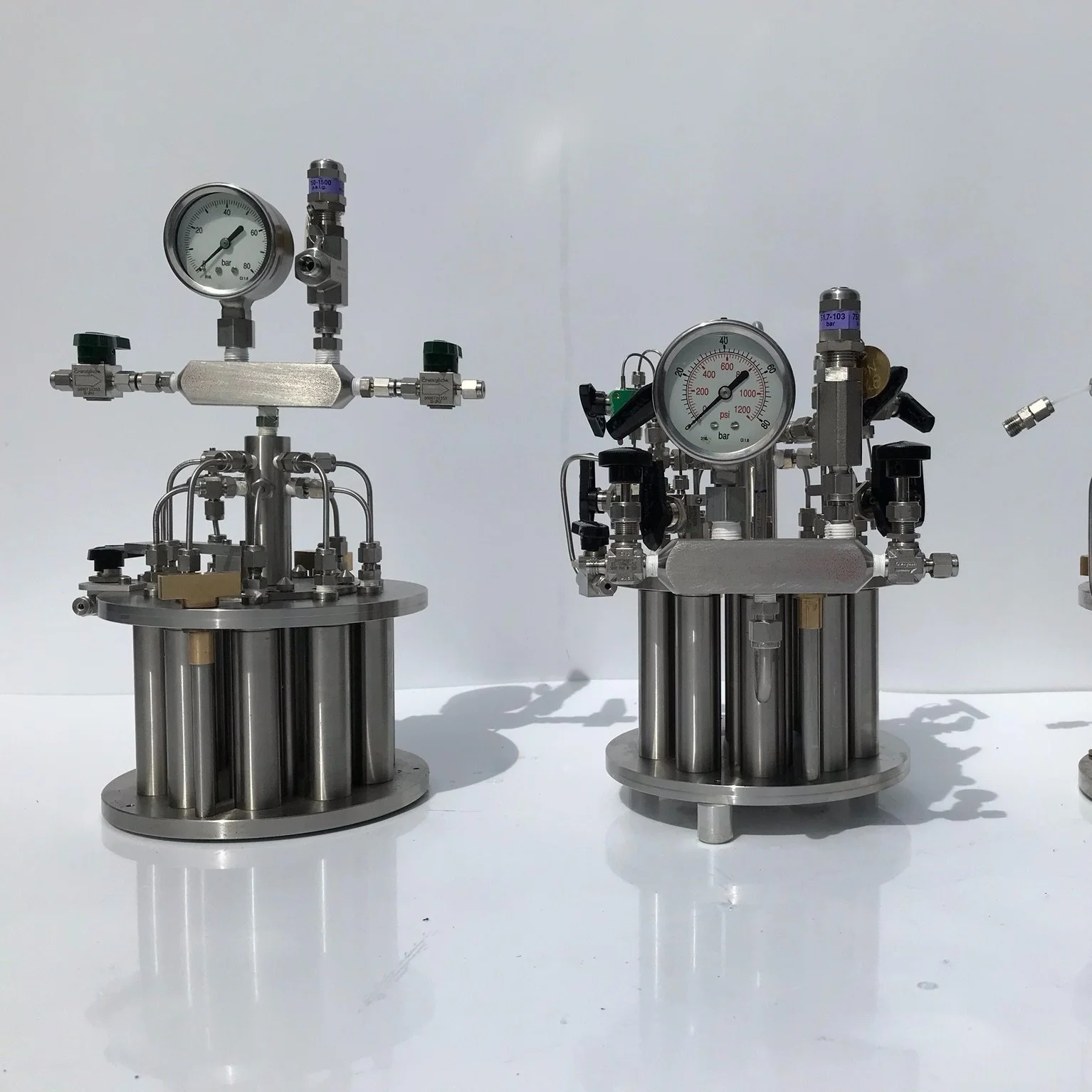

Two stainless steel industrial pressure regulators with gauges and valves, set against a plain white background.

Multicells

    • PID Controls

    • Band Heating

    • Integral Heating Jackets

    • Hot Plates

    • Internal Cooling Coil

    • External Jacketed Vessels

    • Hot Plate Stirrer

    • Cooling Condenser

    • Overhead Glandless Motor Driven Magnetic Drive Agitators

    • Stirring Plate

    • Stirrers

    • Magnetic Spin Bars

    • Charging and sampling while under pressure

    • Viewing windows - photo chemistry ect

    • Conductivity Probes

    • PH monitors

    • Oxygen Meters

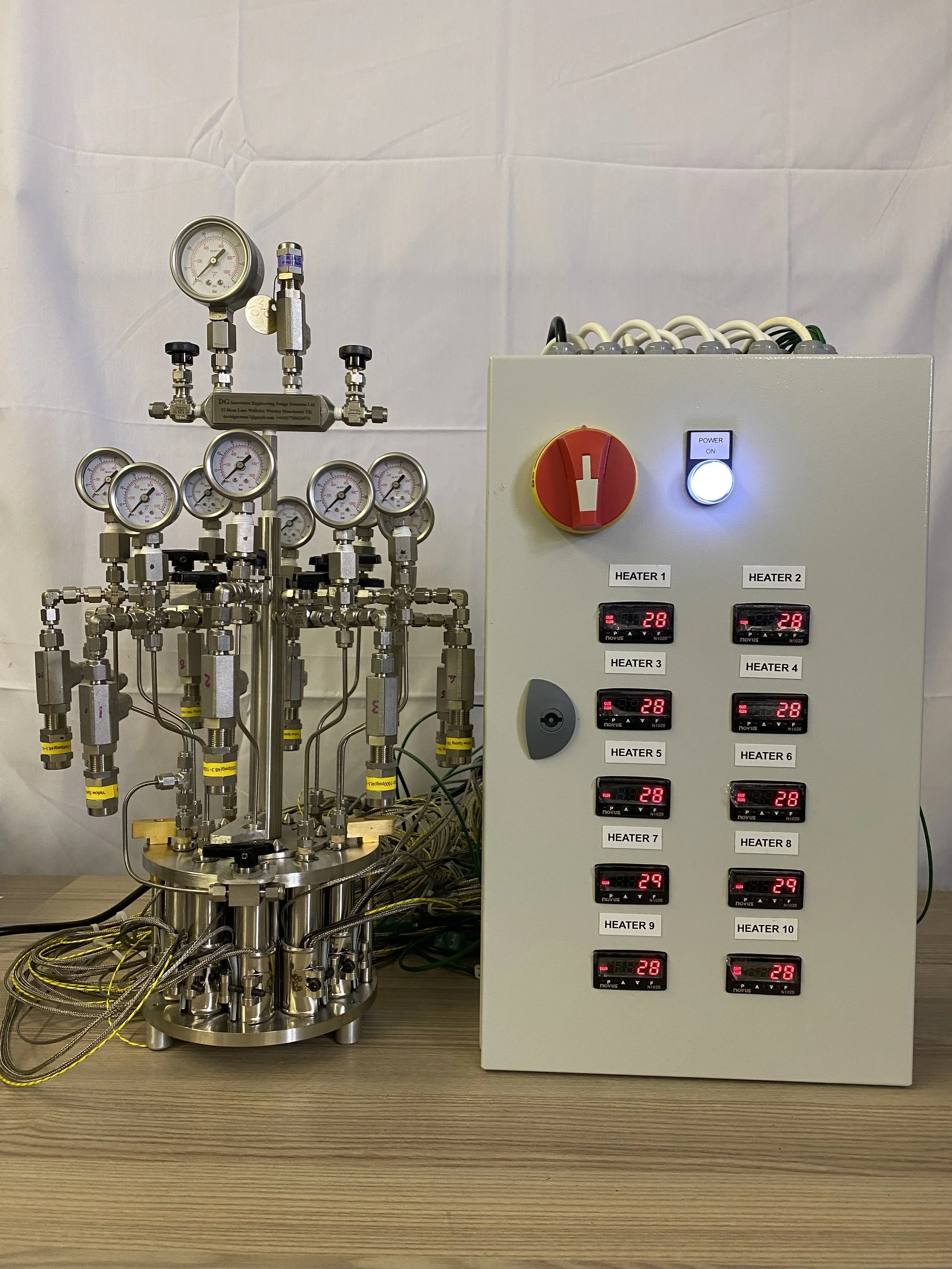

Laboratory equipment with various gauges and wires on a wooden table, featuring a control panel with digital temperature displays and switches labeled for different heaters.

External Controls

  • Our systems will include an automated safety shut down system

    • Control Systems and Electric Control Panels.

    • Gas Mass Flow and Pressure Control Systems

    Data Acquisition - SCADA and HMI custom computer control.

    Automated Remote Operation

    • Gas and liquid waste containment systems

    • Gas bottle manifolds and associated systems

    • Pressure Containment Systems

    • Environmental Chambers

    • Reinforced rooms and blast protection.

    • Fire safety, gas detection and oxygen depletion systems.

    • Integration - Fume cupboards and glove boxes

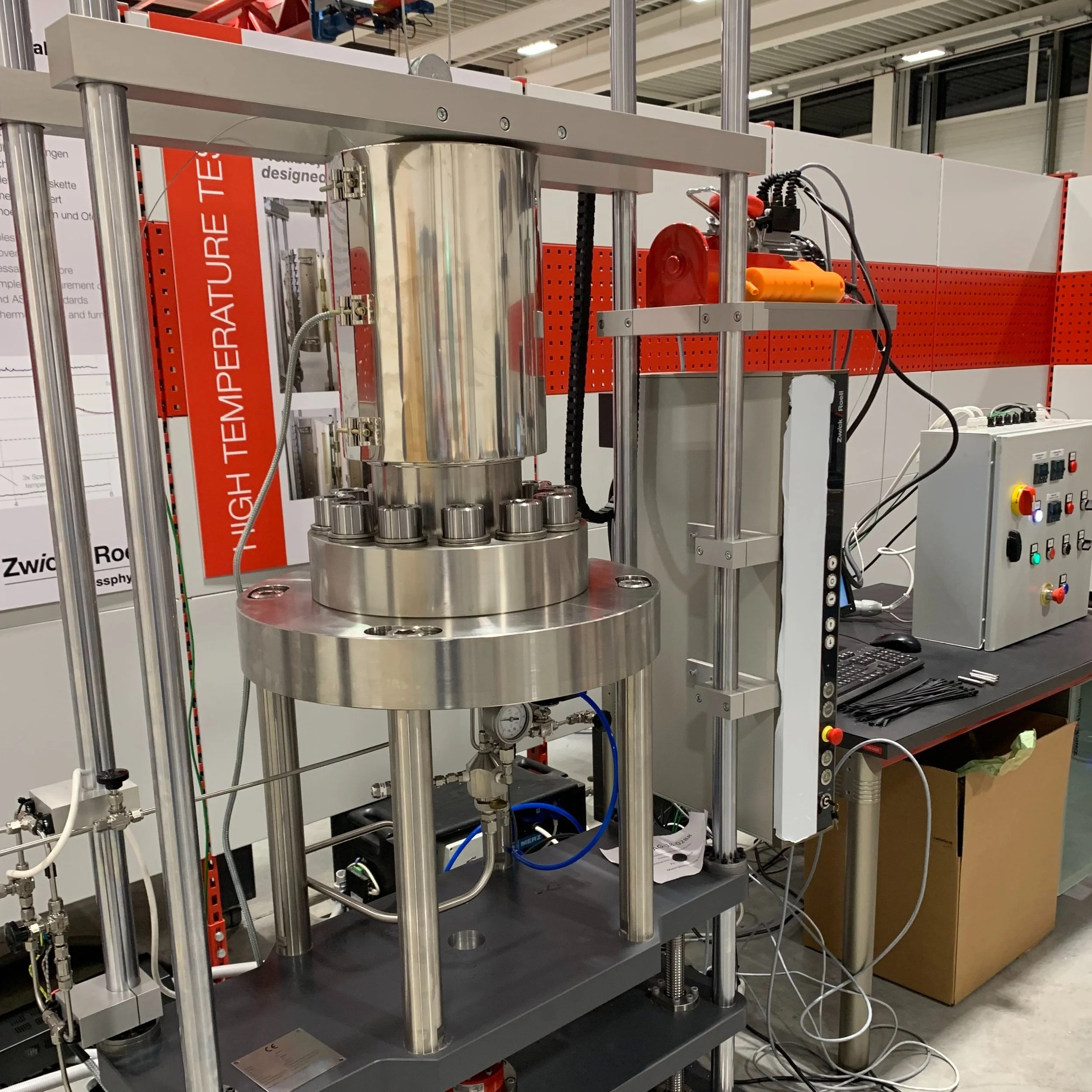

A scientific experimental setup with metal framework, cylindrical chamber, gauges, valves, wires, and control panel in a laboratory setting.

Vessel Handling

    • Scissor Jacks

    • Pneumatic Lifting

    • Assisted Hinges

    • Joists

    • Fixed lid with a lowered away vessel body.

    • Fixed body with a moveable lid.

    • Bolted to table cart to allow full movement.

    • Split Clamps

    • Screw Lid

    • Bolted Closure

    • Custom Locking Plates

Advanced Machinery

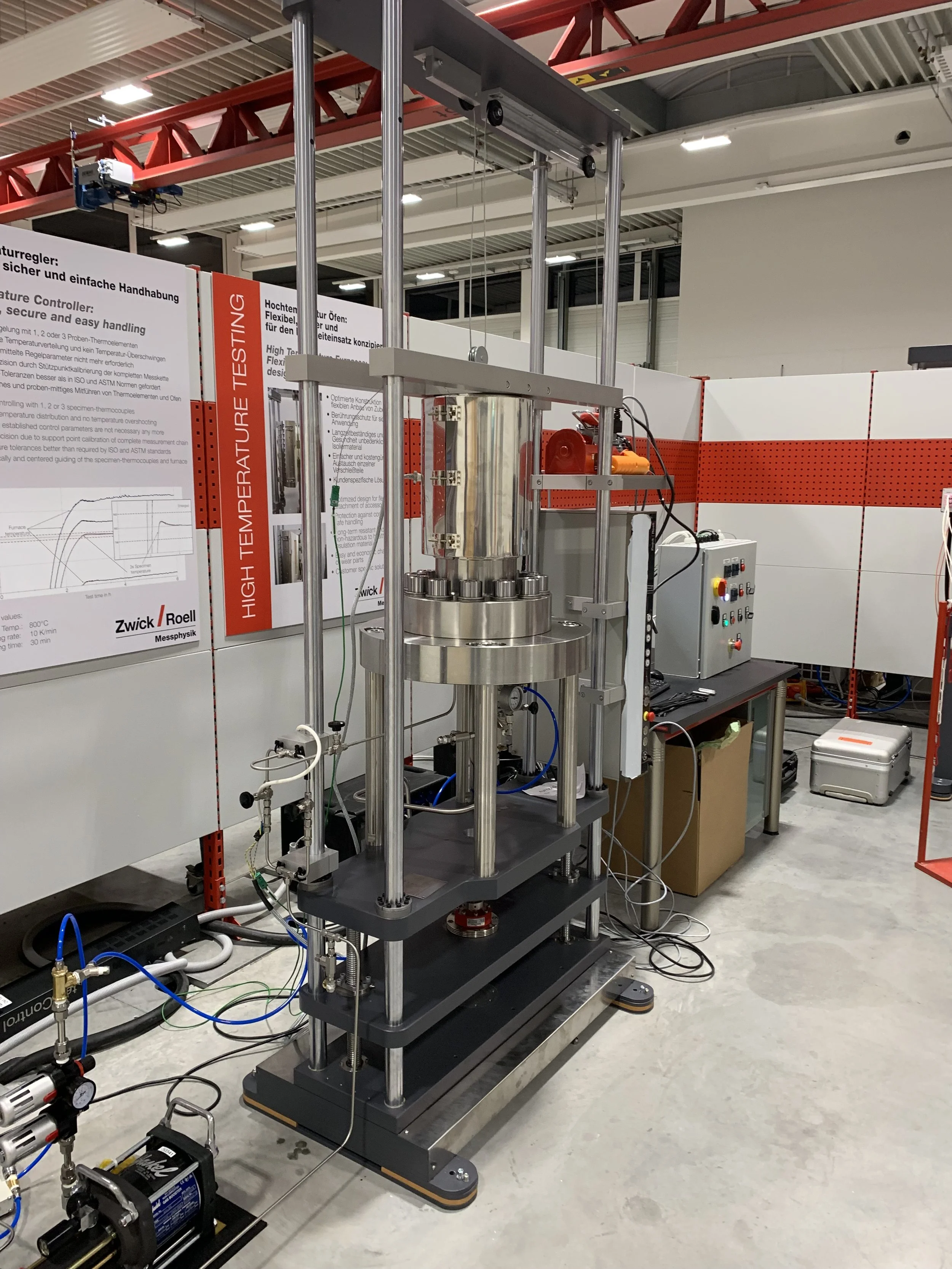

  • Laboratory setup with scientific equipment, including a vertical cylindrical metallic apparatus with a red motor on the side, connected to various tubes, wires, and control panels, and informational posters in the background.

    Tensile and Fatigue Machines

    30 Litre Supercritical CO2 Vessel

    220barg @ 300degrees

    10KN Tensile Testing Machine

    Pressure balanced pull rod/test train

    External single zone heater and associated control panel

    CO2 two stage gas booster pump

    📍 Zwick Roell, Austria

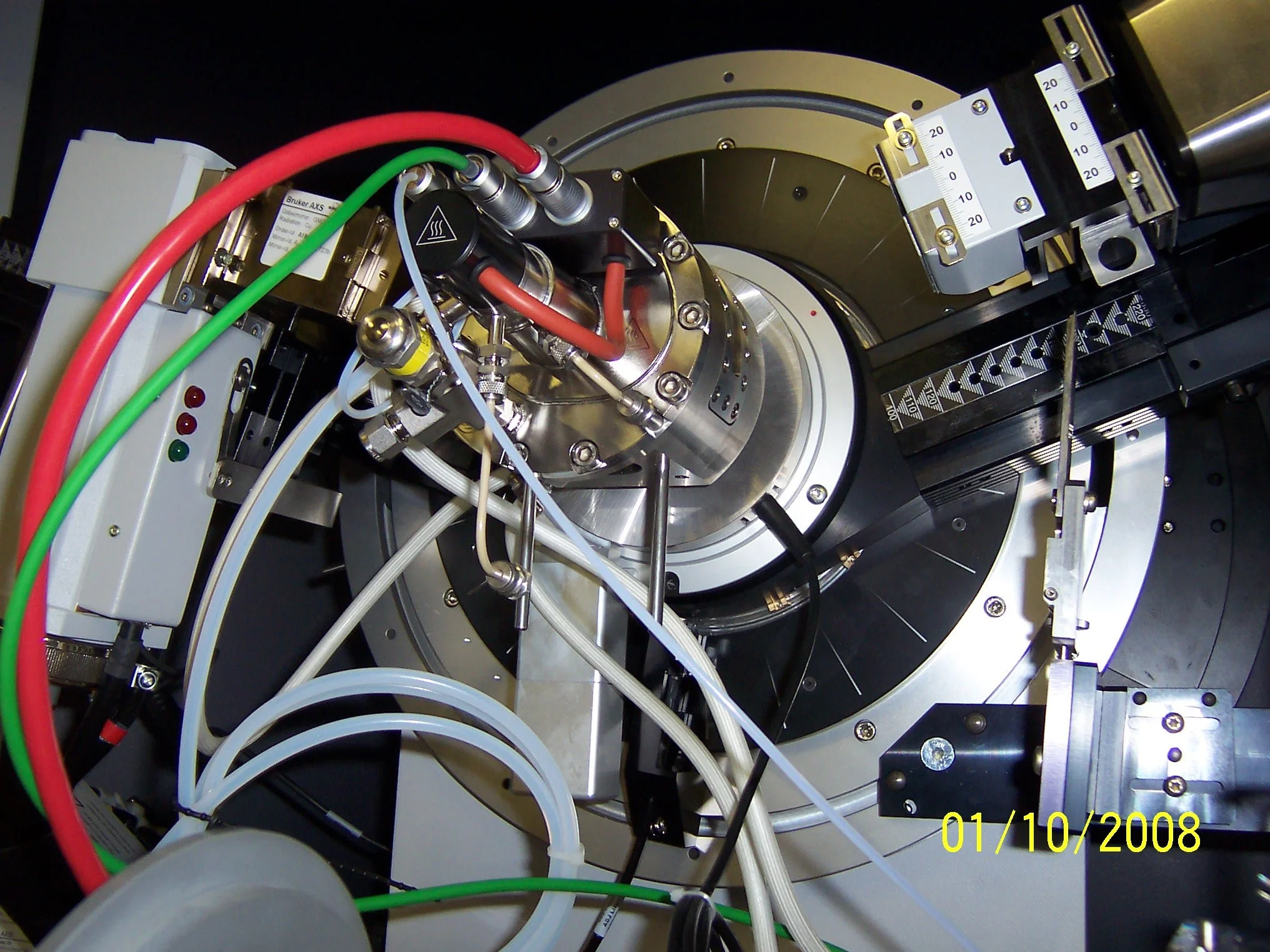

  • Close-up view of a complex scientific laboratory instrument with various tubes, wires, and metallic components. The date '01/10/2008' is displayed in yellow at the bottom right corner.

    Material and Mechanical Testing

    100ml Beryllium Windowed Vessel

    110barg @ 300degrees

    On board Brunker AXS, D8 Advance XRD platform

    Used For Positive Material Identification (PMI)

    📍 University of Birmingham

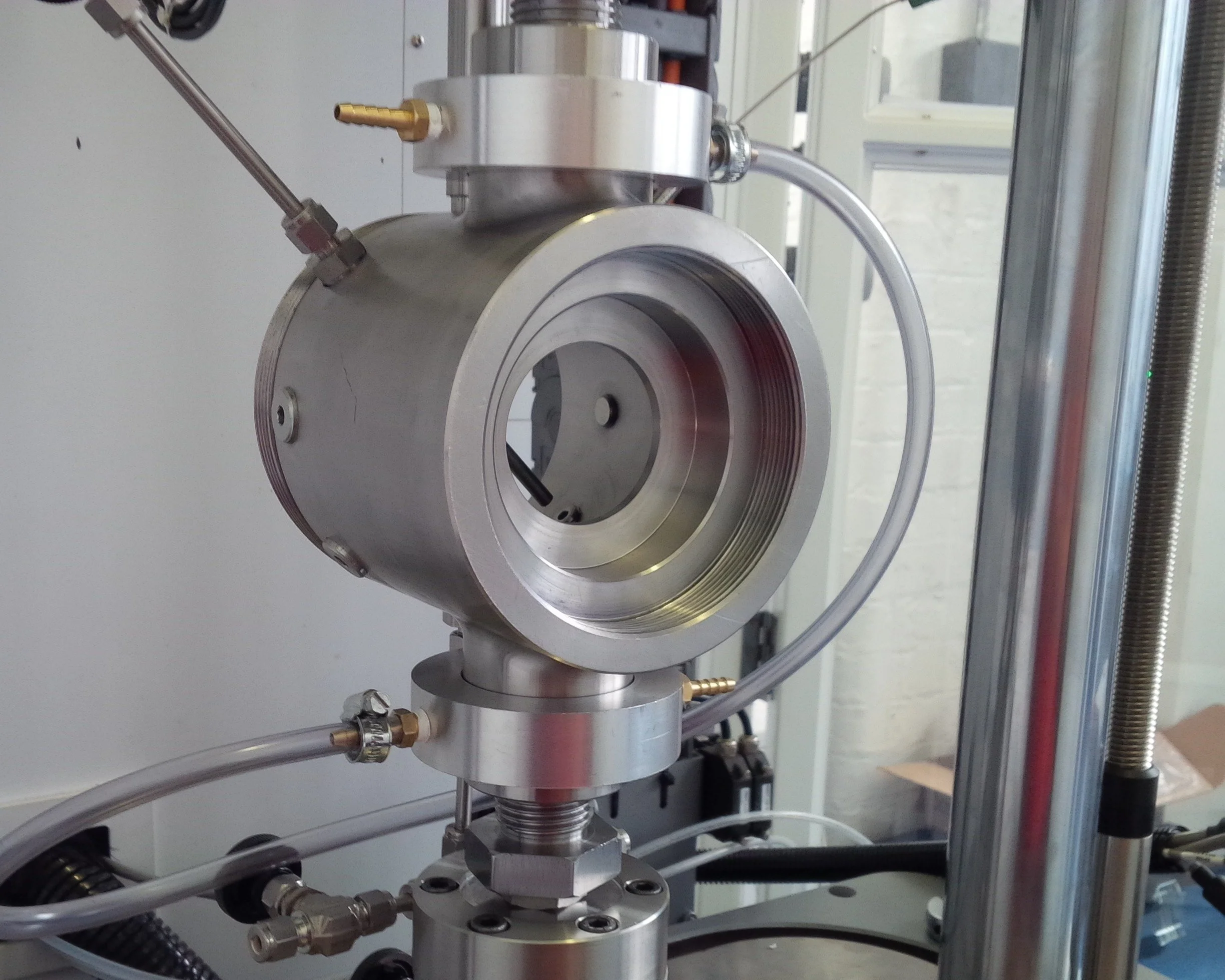

  • Close-up of a scientific or industrial apparatus made of metal with various parts, including fittings, tubing, and a large circular component, in a laboratory or manufacturing setting.

    Digital Imaging Correlation

    100ml Sapphire Windowed H2 Vessel

    220barg @ 300degrees

    10KN Tensile Testing Machine

    High-res Digital Imaging Correlation (DIC) Camera

    External single zone heater and associated control panel

    📍 Manchester Metropolitan University

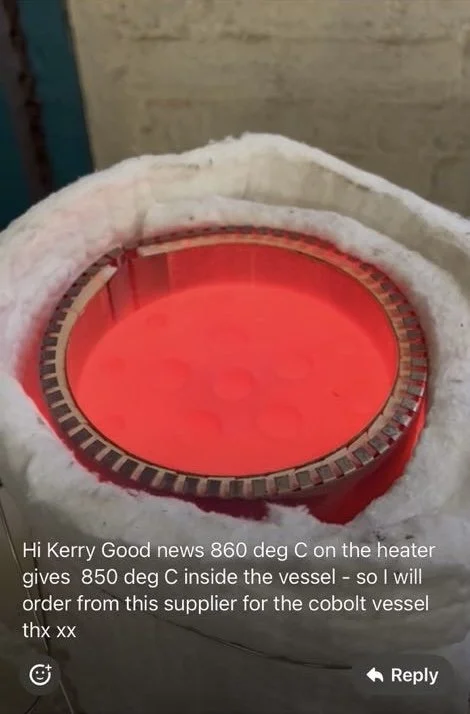

  • Close-up of a high-temperature industrial heater or kiln with a glowing red interior, partially covered by a white insulating material.

    Molten Salt Experiments

    1.1 Litre Molten Salt Reactor

    16barg @ 800degrees

    A vacuum system is connected to the vessel lid

    50ml charging cylinder for multiple injections of 10mgs of fine power samples during each reaction.

    📍 University of Manchester

Spares and Consumables

If you require replacements or restocking, please don’t hesitate to get in touch. Our team is on hand to assist with product selection, availability, and prompt delivery.

📧 Email: davidgorman7@gmail.com
📞 Phone: 07768626574

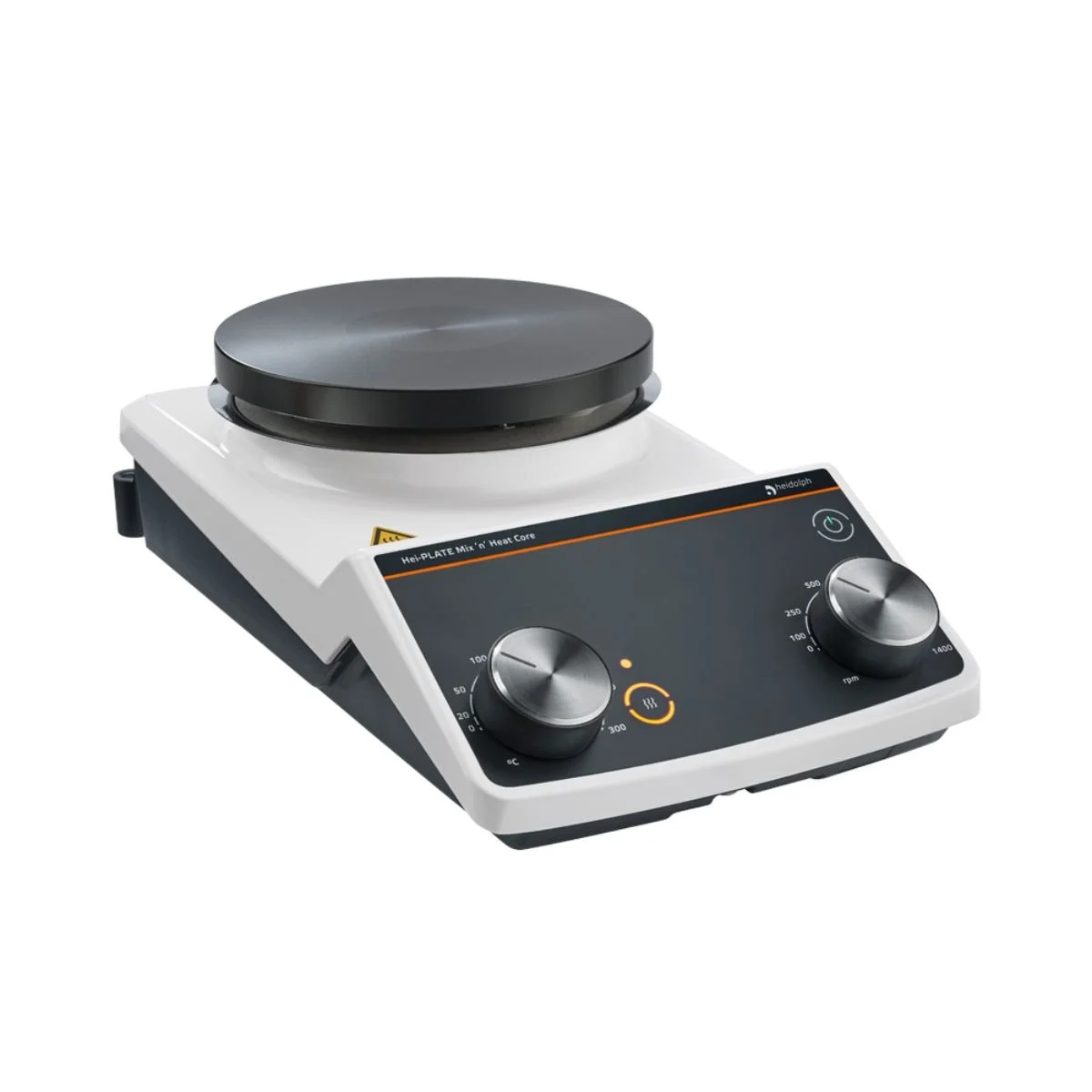

Laboratory heating device with a digital control panel and two large knobs.

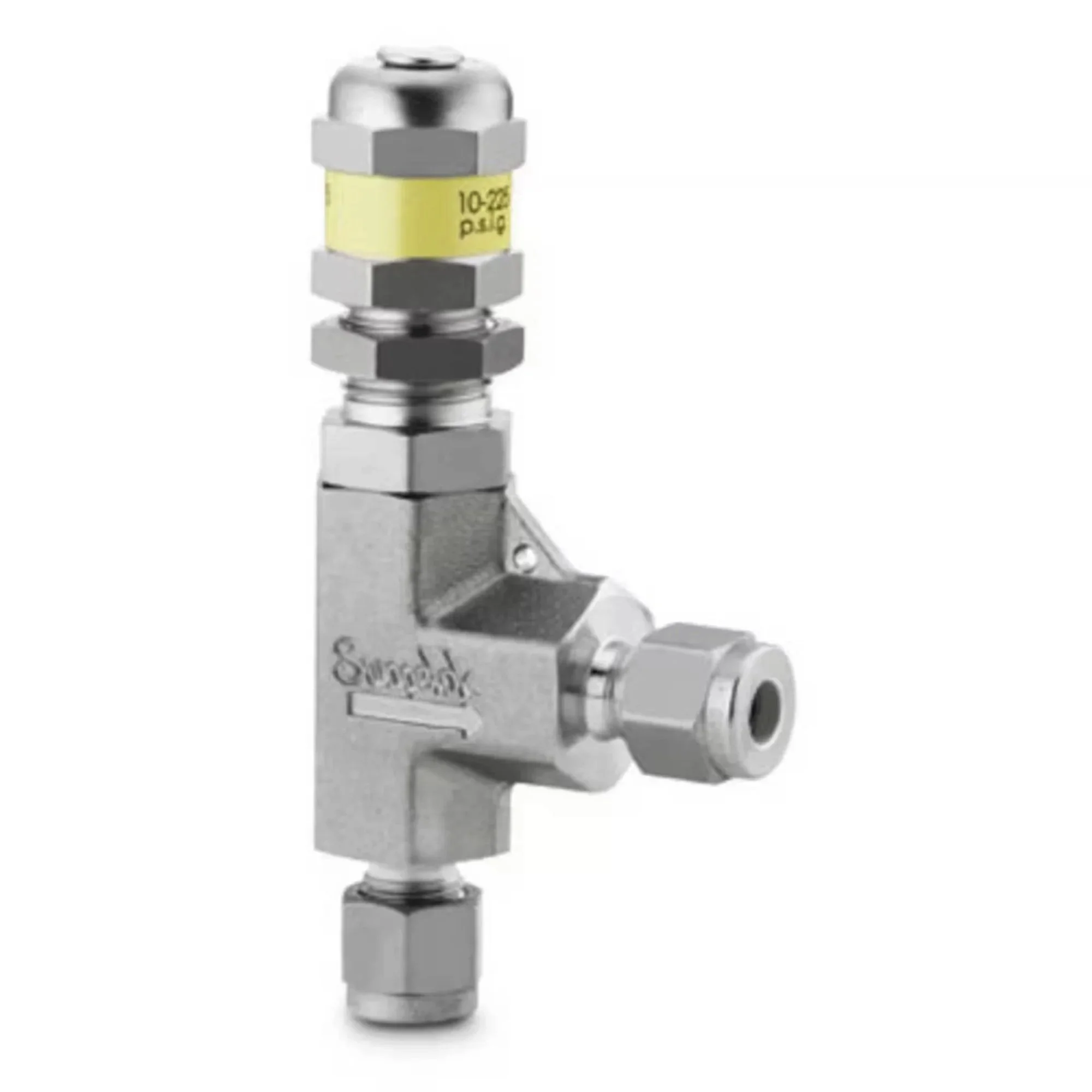

Metal valve with a yellow label, connected to a metallic pipe in a mechanical setting.
A stainless steel temperature probe with green wire attached.
Collection of black rubber O-rings of various sizes

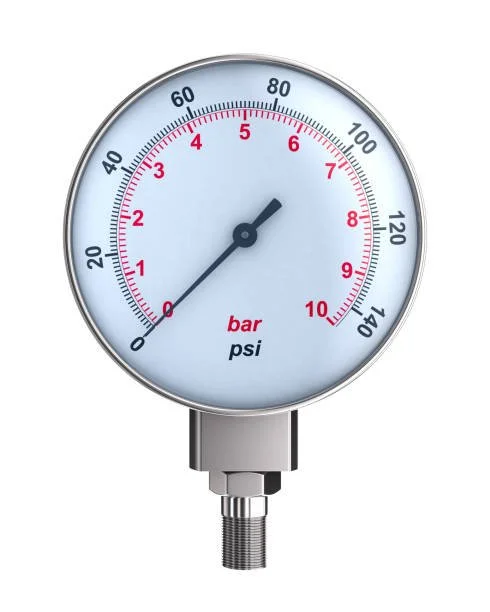

Pressure gauge measuring approximately 68 psi in bars.
A clear glass rolling pin
